Home ProductsExtruded Aluminum Bar5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar

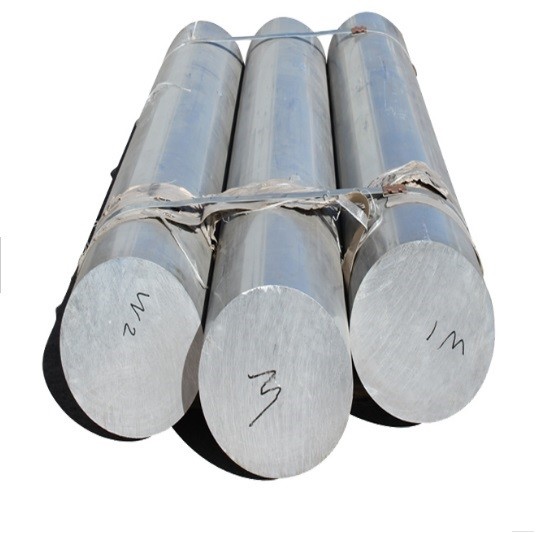

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar
5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar
Contact Now

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar

Minimum Order Quantity : 500kg Price : 3290USD/TON
Packaging Details : Foam rubber and bubble film layered packaging for profile; Delivery Time : 12DAYS
Payment Terms : T/T Supply Ability : 1000000 Meter/Meters per Month
Place of Origin: China Brand Name: shcommon
Certification: GB/ISO Model Number: MV-Rob

Detail Information
Name: Aluminum Rob / Bar Temper: T6
Color: Silver, Customized Length: 0-6000mm
Surface Treatment: Polished Grade: 3000/6061/6063/7075/6082 Series
Processing Service: Bending, Decoiling, Welding, Punching, Cutting Tolerance: ±5%
Shape: Round / Flat MOQ: 500KG
Thickness: 8mm~400mm Port: Shanghai/foshan/ningbo
High Light:

T6 Extruded Aluminum Bar

,

5mm Extruded Aluminum Bar

,

5005 Extruded Aluminum Bar

Product Description

Led Aluminum Profile For Led Light Bar

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 0

Product Description5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 1

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 2

Mechanical Property
ALUMINUM
ALLOY		 Grade Normal
Temper		 Temper Tensile Strength
N/mm²		 Yield Strength
N/mm²		 Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)		 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)		 3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)		 5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)		 6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)		 7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150
Product Show

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 3
Application

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 4

Factory Show

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 5 SHANGHAI Our We Our profiles apply to motor profiles,assembly line profiles,radiator profiles,

bridge profiles,Ship profiles,elevator profiles,square tubes,round tubes,aluminum accessories and other new decorative materials.





Certificate

5mm 9.5mm 10mm 12mm 5005 5052 6061 7075 T6 Extruded Aluminum Bar 6





Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .

Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.

Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .

Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .

Q5: How can I quickly get the price list ?
A5: Directly click "chat now" via alibaba or send us email with detail specifications,you will get the official price list in 1 hour
